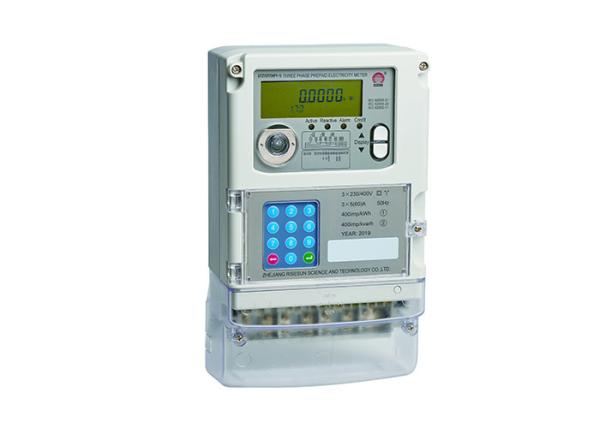

DTZY217 Three Phase STS Keypad Prepaid Meter
General introduction
DTZY217 Three Phase STS Keypad Prepaid Meter has the functions such as metering, monitoring, alarm, display, communication and load control, etc. It adopts STS standard encryption algorithm to exchange the information based on TOKEN, the meter is featured with high metering accuracy, high level security, strong compatibility, easy operation, etc.
Technical specifications
| Items |
contents |
| Standards |
IEC62052-11; IEC62053-21;IEC62053-23; IEC62055-31;IEC62055-41;IEC62055-51; |
| Accuracy |
Active:Class 1; Reactive: Class 2 |
| Protocol |
IEC62056-21 |
| Reference voltage |
3*220/380V 3*230V/400V 3*240/415V 3*120/208V |
| Current |
5(80)A,10(100)A |
| Reference frequency |
50/60 Hz |
| Power consumption |
＜1.5W, 6VA |
| Operation voltage range |
0.8Un~1.2Un |
| Limited operation voltage range |
0.7Un~1.3Un |
| Operation temperature |
-25℃~ +60℃ |
| Limited operation temperature range |
-40℃~ +70℃ |
| RTC deviation |
≤0.5s/d |
| Life time |
15 years |
| Size |
290mm(L)×170mm(W)×85mm(H) |
| Net weight |
About 2.6kg |
Main functions
Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends
- Step tariffs
- Friendly power supply management
Support emergency credit
Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.
Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc, at the same time the meter can disconnect power supply when the tampers occur which are configured.
Current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open can be alarmed which are configured.
- Disconnection /reconnection
Detecting the customer's load status, it can alarm or disconnect the power supply when overload happens.
Optical port and RS485 interface are available; PLC, RF, GPRS or twist-wire interface is optional.
PLC, RF or twist-wire is optional.
